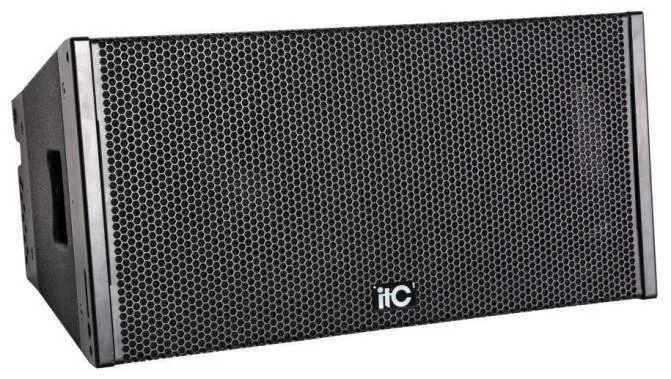

TK-L205/
TK-S125 Line Array Speaker
Learn more
Professional Audio · Line Array
The linear array speaker has a wide range of applications. It can be used with the professional amplifier and audio processor. It is suitable for large outdoor performances, large theaters, stadiums, etc.
Features
- Birch housing, small in size and light in weight, wear-resistant paint treatment.
- Using a 12" woofer unit and a 3" tweeter driver, the sound is full of sensitivity and penetration.
- Frequency divider in precise design can optimize the power response and the vocal MF performance.
- The combination of hoisting installation and linear array design, allows 0-15 degrees of adjustable coverage area of the speaker, and has the advantages of compact combination, lightweight, and convenient engineering assembly.
- Professional hanger combination, simple hanging method, convenient assembly.
Technical specifications
| Model | LA-112H | LA-118H |
|---|---|---|
| Type | 2-frequency linear array speaker | Subwoofer |
| Rated power | 400W | 600W |
| Peak power | 1600W | 2400W |
| Nominal impedance | 8Ω | 8Ω |
| Frequency range | 55Hz-20KHz | 40Hz-400KHz |
| Sensitivity | 100dB | 99dB |
| Maximum SPL(rated/peak) | 126dB/132dB | 127dB/133dB |
| Woofer | 1×12" woofer | 1×18" |
| Tweeter | 1×3" compressed driver | / |
| Horizontal coverage angle(-6dB) | 110° | / |
| Vertical coverage angle(-6dB) | 10° | / |
| Size(H×W×D) | (320+225)×635×415mm | 505×635×655mm |
| Weight | 23.5kg | 41.5kg |
