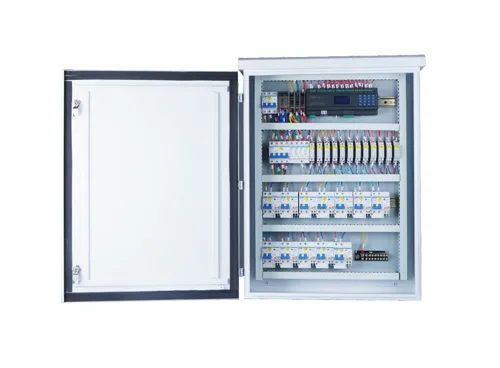

TL-PT316
Distribution Box
Learn more
Stage Lighting · Others
Features
- Adopt a 225A main switch, and a high breaking air switch with double protection of overload and short circuit.
- 3-phase independent voltage, current and monitoring; 3-phase A.B.C indicators.
- Three output modes: 32A bakelite plug, 16A waterproof plug, 19-pin plug.
- Input rated current: 400A rhino plug input, maximum 24 channels × 4kW, optional for any load.
- Built-in single-item controllable circuit, can use DMX512 console to control each item on/off individually.
Technical specifications
| Input voltage | Three-phase five-wire system AC380V±10%, frequency 50Hz±5% |
|---|---|
| Rated input current | 400A Rhino plug input, maximum 24 channels × 4kW, suitable for any load |
| Fixture size (L×W×H) | 700×620×660mm (flight case) |
| Net weight | 54.5kg |
