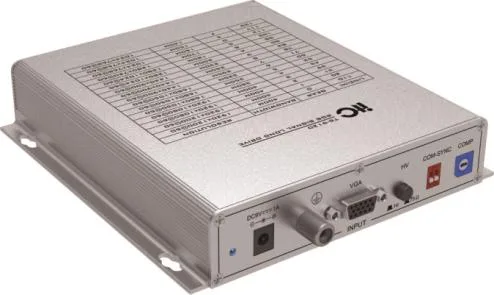

In the multimedia application system, a display is always needed to display high-definition picture quality in large distance within the scope of application. To solve this kind of problems in engineering and design of TS-9120 video signal pre emphasis driver, can achieve high bandwidth (400Mpixel band wide), high quality, the video signal transmission distance 120 meters long, to ensure that the signal is not affected by external interference in the transmission process, does not appear to decay; can improve the image signal distortion in the long distance transmission, double image, trailing.
Features
- Support signal formats: RGBHV, RsGsBs, YPbPr/YCbCr.
- Support the video signal brightness and sharpness, the front segment adjustable pre emphasis.
- Support (pixel band wide) @-3dB 400M bandwidth. All outputs the perfect support for Full HD 1920x1200@60Hz or 1920x1080p@60Hz.
- Support for the ideal reduction maximum transmission distance is 120 meters (1024x768@60).
- HV input impedance select button, select 510R or 75R input matching.
Technical specifications
| Model | TS-9120 |
|---|---|
| Video input | |
| Interface | 15-pin HD female interface |
| 1Vpp component video or Y and composite video in S-video; | |
| Signal strength | 0.7Vpp RGB (computer signal); 0.3Vpp component video |
| Cb/Cr or Pb/Pr, C in S-video | |
| Min/max level | Analog signal: 0.5V ~ 2.0Vpp |
| Impedance | 75 Ω |
| Return loss | -30dB@5MHz |
| Genlock | 0.3V-0.4Vpp |
| Maximum DC offset error | 15mV |
| Long-line driver interface part video | |
| Gain | Minimum 0.2dB (0~10MHz bandwidth) |
| Maximum 1.8dB ((0 ~ 10MHz bandwidth) | |
| Minimum 0.4dB (10M ~ 400MHz bandwidth) | |
| Maximum>6dB (10 ~ 400MHz) | |
| Differential phase error | <2.0 degrees, 3.58MHz (only when the compensation file below 40 meters) |
| Differential gain error | 0.3%, 3.58-4.43MHz (only when the compensation file below 40 meters) |
| Maximum transmission delay | 5nS(±1nS) |
| Signal type | RGBHV,RGBS,RGsB, RsGsBs,YPbPr/YCbCr, |
| S-Video, composite video signal (CVBS) | |
| Long-line drive part of the video output | |
| Interface | BNC female interface |
| Min/max level | Analog signal: 0.5V ~ 2.0Vpp |
| Impedance | 75 Ω |
| Return loss | -30dB@5MHz |
| DC compensation | Maximum ±5mV |
| Sync signal | |
| Input/output type | RGBHV, RGBS, RGsB, RsGsBs |
| Input level | 0.5V- 5.0Vpp,: 4.0Vpp normal |
| Output level | AGC-TTL: 5Vpp, unloaded (unterminated) |
| Input impedance | 510 Ω / low impedance optional |
| Output impedance | 75 Ω (monitoring output interface part); |
| 75 Ω (long-distant driver output interface part) | |
| Polarity | Positive or negative (exactly consistent with the input) |
| Control type | |
| Method | Manually select each file, subject to subjective feelings. |
| Specification | |
| Input power | DC 9V 1.5A |
| Operating temperature | -20℃~ +70℃ |
| Environment humidity | 20%～80% relative humidity, no condensation |
| Installation | Hanging installation |
| Dimension (LxWxH) | 163x152x32mm |
