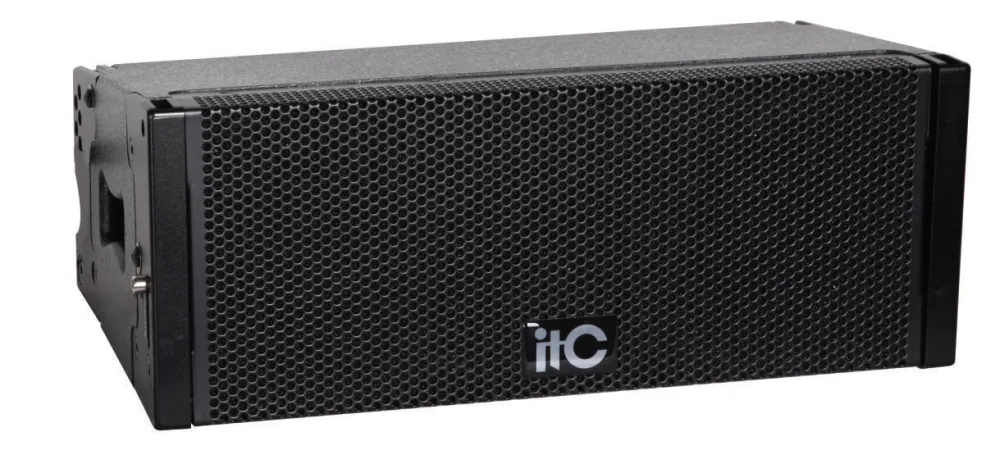

LA-2650/LA-1200
Line Array Speaker
Learn more
Professional Audio · Line Array
The linear array speaker has a wide range of applications. It can be used with the professional amplifier and audio processor. It is suitable for large conference rooms, muilt-function halls, banquet halls and so on.
Features
- Quality plywood housing, small in size and light in weight, wear-resistant paint treatment.
- Using two 5" mid-woofer units and a 1.3" tweeter driver, the sound is full of sensitivity.
- Frequency divider in precise design can optimize the power response and the vocal MF performance.
- The combination of hoisting installation and linear array design allows 0-10 degrees of adjustable coverage area of the speaker.
- Professional hanger combination, simple hanging method, convenient engineering assembly.
Technical specifications
| Model | LA-205M | LA-112M |
|---|---|---|
| Type | 2-frequency linear array speaker | Subwoofer |
| Rated power | 150W | 450W |
| Peak power | 600W | 1800W |
| Nominal impedance | 16Ω | 8Ω |
| Frequency range | 65Hz-20KHz | 45Hz-400KHz |
| Sensitivity | 98dB | 98dB |
| Maximum SPL(rated/peak) | 120dB/126dB | 125dB/131dB |
| Woofer | 2×5" woofer | 1×12" |
| Tweeter | 1×1.3" compressed driver | / |
| Horizontal coverage angle(-6dB) | 110° | / |
| Vertical coverage angle(-6dB) | 10° | / |
| Size(H×W×D) | (160+125)×415×230mm | 350×415×430mm |
| Weight | 9.5kg | 19.9kg |
